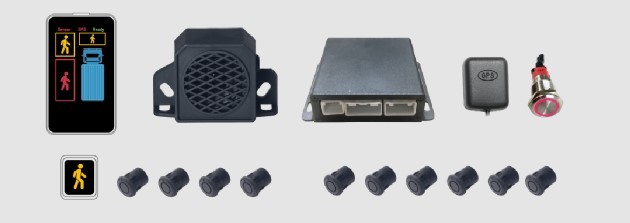

DVS PSS 2024 Sensor Kit

Working conditions

The BSIS sensor and radar work when speed under 30km/h, still working but not gives the alarm when speed is over 30km/h.

The MOIS camera gives the alarm when speed is 0~5km/h, still working but not gives the alarm when speed is over 5km/h.

Product Feature

  • GPS with gyroscope to detect speed more accurately
  • Easy to Install
  • Perfect for Safety Driving algorithm ecu
  • Led and Audio Warning

Sensor Specification

Sensor Frequency : 58 KHz

Working Voltage : 12 ~ 32V

Working Current : < 500mA

Operating Temperature : – 40 ~ 80℃

Sensor Waterproof IP Rating : – IP69

Alarm Distance : 2.5m

Horizontal Detection Angle : 120 degrees

Vertical Detection Angle : 60 degrees

Number of sensor : up to 10 sensors

GPS search time : < 60 seconds

AI Camera Specification
Working Voltage: 12~36V

Working Current: <500mA

Operating Temperature: <500mA

Camera Angle: MOIS front camera: 170 degrees

Clarity: 1080P 30pfs

Detection Range: Front 2 meters (l) * 3 meters (W)

External Alarm Specification

Rated Voltage: DC 12 / 24V

Working Current: < 500mA@24V

Sound Frequency: 500Hz ~ 7KHz

Waterproof IP Rating: IP69

Volume: 80-85 dB at 1m

Function: With On/Off switch and mute function, mute time: at 23:30pm and 07:00am

Certification: CE/E-mark

Radar Specification

Detection Target Type: moving targets (vehicles / pedestrians / obstacles, etc.)

Nomber Of Transceiver Links: 2T4R

Working Mode: FMCW (CS + MIMO)

Operating Frequency Range: 76GHz ~ 77GHz

Eirp: ≤ 30dBm

Distance Detection Range: 0.15m ~ 120m

Horizontal Detection Range: ± 75°

Vertical Detection Range: ± 10°

Distance Measurement Accuracy: ± 0.1m

Distance Resolution: 0.25m

Relative Speed Detection Range: -400km/h ~ +200km/h

Relative Speed Measurement Accuracy: ± 0.15km/h

Relative Velocity Resolution: 0.5km/h

Angle Measurement Accuracy: ± 0.4°

Angular Resolution: 4°

Maximum Number Of Target Tracks: 128

Data Output Refresh Rate: ≤ 50ms


SKU: MOTDVS6/2024 Categories: ,

Summary of Progressive Safe System

Improving indirect vision

Camera Monitoring Systems (CMS) guidance will be updated to allow use of both systems. This will give the driver a wider field of vision and reduce the cognitive workload.

CMS fitted on vehicles must eliminate any remaining blind spots. This provides a visual alert of an approaching vulnerable road user and prevents collisions in the blind spot area.

Sensors must ensure full coverage down the nearside of rigid vehicles to detect vulnerable road users. They must not activate in relation to roadside furniture or stationary vehicles. This aims to prevent left turn collisions. For articulated trailers, sensors must be fitted to the front tractor unit but are recommended for the trailer where possible.

Moving Off Information Systems (MOIS) sensors must be fitted to the front of a vehicle to prevent collisions at the frontal blind spot zone when a vehicle moves off from rest.

Warning vulnerable road users of intended manoeuvres

Audio warnings must be fitted to all vehicles, including those with left-hand drive to ensure all vehicles have the ability to warn of an intended manoeuvre.

Warning signage requirements remain unchanged.

Minimising physical impact of a hazard

Sideguard requirements remain unchanged

The specific advantages of the AI camera product are as follows:

  1. Image recognition:
  2. The AI camera does not need infrared lights, and can recognize people without street lights
  3. Accurate and no-delay recognition when the vehicle speed is >30km
  4. Display: A-pillar pedestrian LED, rich and detailed display of X-WATCH
  5. Sound in the Vehicle: pedestrian left/pedestrian front
  6. Sound outside the Vehicle: Caution! vehicle turning left

Caution! vehicle turning right

Warning! vehicle reversing

  1. High precision new GPS with inertial navigation(Ordinary GPS sends one data every 1 second, and the one with inertial navigation sends 10 times per second. Accurately knows the vehicle speed at low speeds, even in tunnels or basements).
  2. Camera shell design: The integrated design of the left camera, equipped with a mounting bracket, solves the problem that the vehicle body protrudes from the cab and blocks the camera’s sight (Bracket is optional and the length of the bracket can be changed by customization)
  3. Installation software calibration: We have developed a mobile phone APP to set and program the AI camera. If the customer has a batch of vehicles to install, the models of the same model of vehicles are the same, and the installation location is the same, our mobile APP calibration support only needs to calibrate one vehicle, and other vehicles directly copy the calibration parameters without re-calibration. This function can improve the efficiency of installation and calibration.
  4. Systematic design, installation saves 3 times of time compared with peers
  5. System self-test function: Including camera, GPS, etc.
  6. Extended function: Control MDVR, Monitor

DVS PSS 2024 sensor kit brochure


Supply Only, Supply and Install
